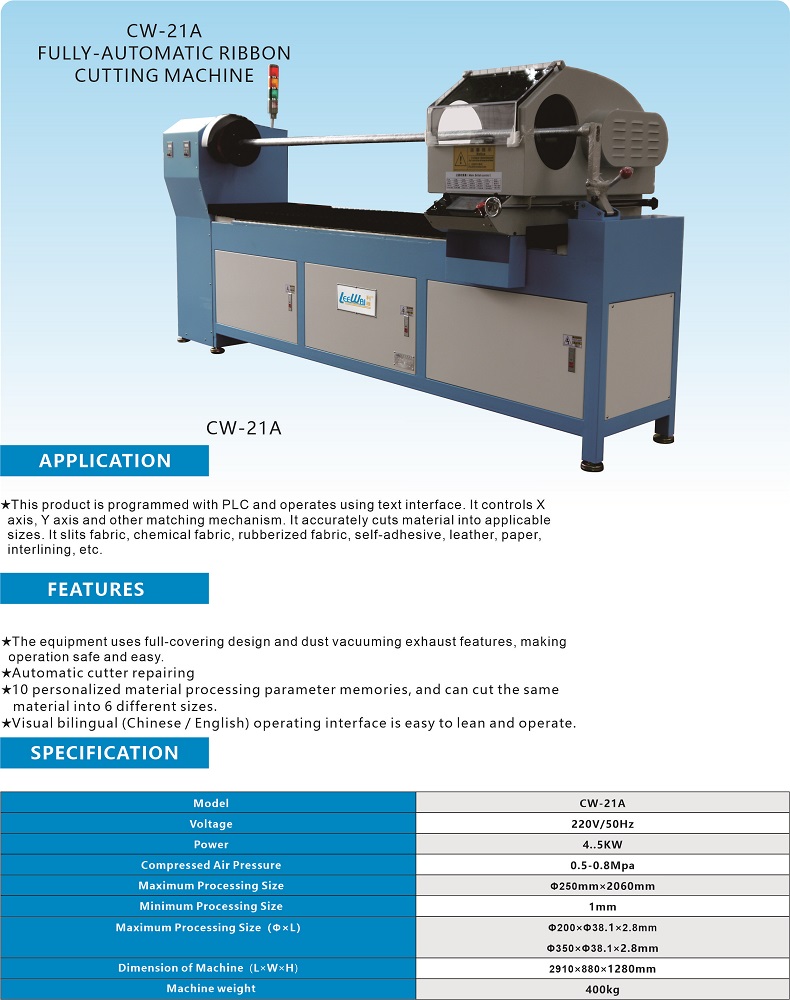

LEE WAI BRAND Fully-Automatic Ribbon Cutting Machine

Brand :

Categories : FULLY-AUTOMATIC RIBBON CUTTING MACHINE SET

Model :

CW-21A

Features:

★ The product is programmed with PLC and operates using text interface.

★ It controls X axis, Y axis and other matching mechanism.

★ It accurately cuts material into applicable sizes.

★ It slits fabric, chemical fabric, rubberized fabric, self-adhensive, leather, paper, interling, etc.

Specification:

Model	CW-21A
Voltage	220V / 50Hz
Power	4.5 KW
Compressed Air Pressure	0.5-0.8 Mpa
Maximum Processing Size	OD 250mm/ Length2060nn
Minimum Processing Size	1mm
Dimension of Applicable Cutter	Φ200×Φ38.1×2.8 /Φ350×Φ38.1×2.8
Dimension of Machine (L×W×H)	2910×880×1280mm
Weight	400 kg
