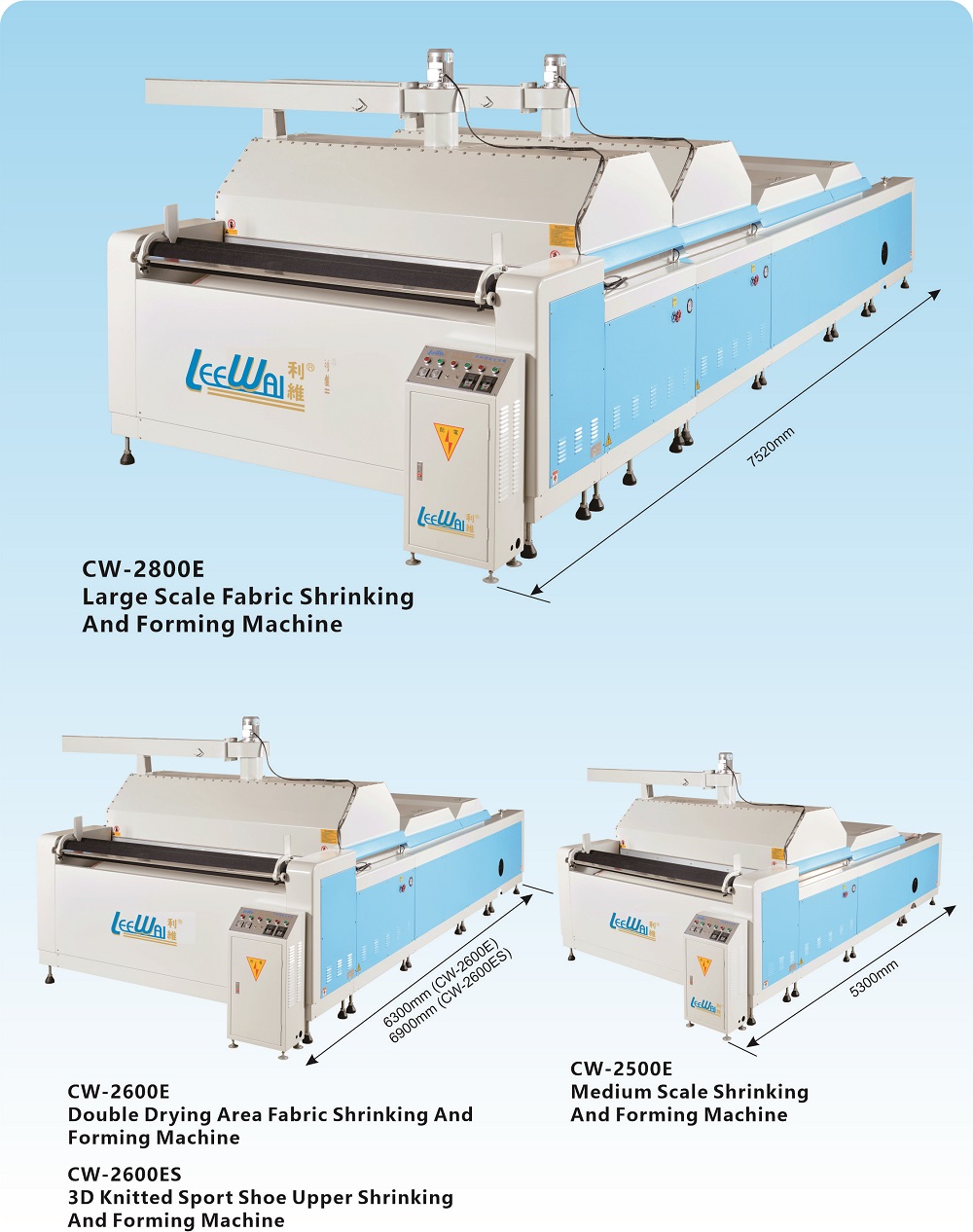

Fabric Shrinking and Forming Machine

Brand : LEEWAI
Model :
CW-2800E / 2600E / CW-2600ES / CW-2500E








Features:

★This latest series is to meet the demands of the large and middle scale factories. The longer steam area/ dry area/cooling zone make the shrinking effect more remarkable and achieves the ideal cotton material shrinking effect.

★Usage of the steam heat for drying area and steam arean at the same time, can reduce the production cost such as the power and energy. It can save the power and energy above 30% compareed to the popular type.

★This series has the function of speed ajustment. The operator can adjust the shrinking speed according to the actual needs.

★The use range is wide: suitable for cotton knitted material, the shuttle weaving, the denim and so on.

★Easy operation: The blowing/sucking/ccwling intesion, the swinging /folding cloth speed, the per-wet, the steam quantity and the temperature can be set and adjusted.

★Cotton material gets moist by steam. Steam for each area is even makes the cotton material soften and fix stably.

★THe cotton material enters the dry area after optional vibration function that snables the moist cotton material to be dried under the best temperature.

★This series uses the force blowing and sucking function as the cooling system to cool the cotton material rapidly and then achieve the shrinking effect by temperature difference.

★To equip with meter for exact measurement of cotton material length.

★The latest design, proper layout, sealed work, elegant appearance and the steady temperature/ humidity are the unique function.





Specification:

Model

CW-2800E

CW-2600E

CW-2600ES

CW-2500E

Voltage

380V±10V

Total Power

15KW

25KW

20KW

15KW

Average Power Consumption

5KW

9KW

11KW

7KW

Steam Pressure

4~6 kg/m2

Seteam Consumption

200 kg/h

120~150 kg/h

Speed Range

1~20 yards/min

Optimal Processing Speed

12 yards/min

8 yards/min

8 yards/min

8 yards/min

Effective Processing Width

2000 mm

Dimension of Machine (mm)

7520×2800×1650

6300×2800×1600

6900×2800×1950

5300×2800×1650

Optional Usage of Steam Boiler

200 kg Oil-fired steam boiler*1set

72 KW/96 KW Electric steam boiler*1set /

or 100~150 kg Oil-fired steam boiler*1set
