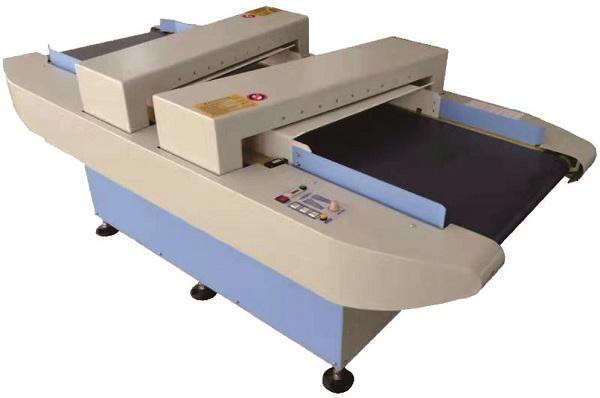

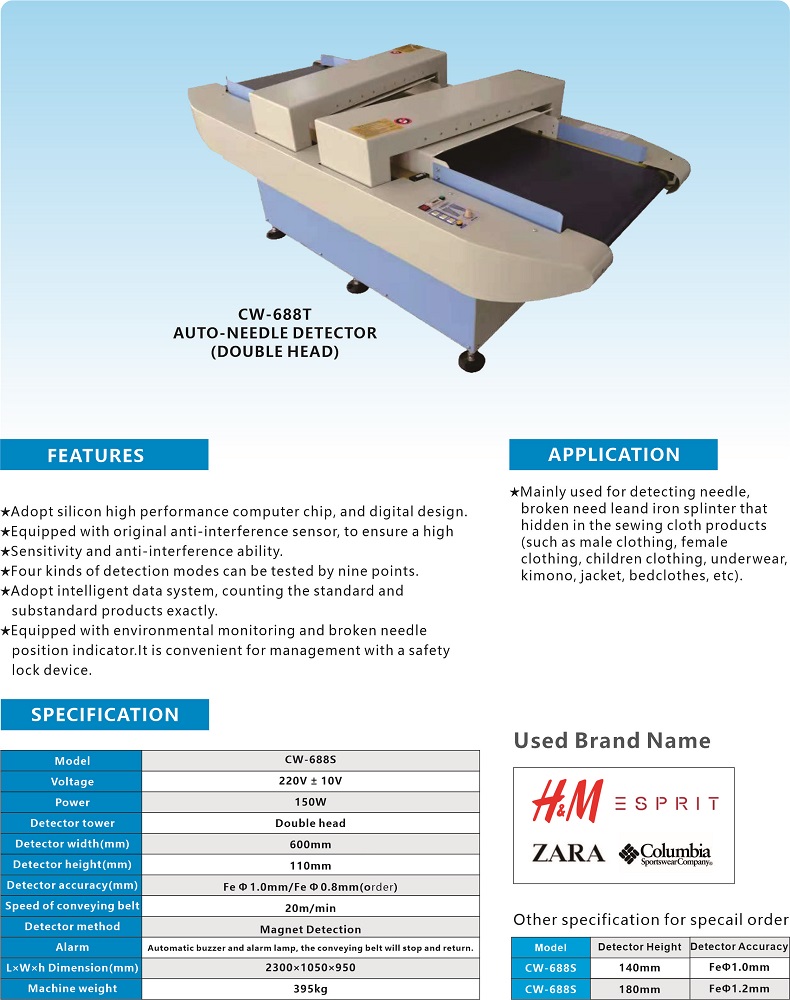

LEE WAI BRAND Auto Needle Detector (Double Head)

Brand : LEEWAI
Categories : Needle Detector
Model :
CW-688T








Features:

★ Adopt silicone high performance computer chip, and digital design.

★ Equipped with original anti-interference sensor, to ensure a high sensitivity and anti-interference ability.

★ Four kinds of detection modes can be tested by nine points.

★ Adopt intelligent data system, counting the standard and substandard profucts exactly.

★ Equipped with enviromental monitoring and broken needle position indicator.

★ It is convenient for management with a safety lock device.



Application:

Mainly used for detecting needle, broken needle and iron splinter that hidden in the sewing cloth products (such as male clothing, female clothing, children clothing, underwear, kimono, jacket, bedclothes, etc.)

Specification:

Model

CW-688H

Voltage

220V±10V

Power

150 KW

Detector Tower

Double Head

Detector Width

600mm

Detector Height

110 mm

Detector Accuracy

Fe Φ 1.0 mm

Speed of Conveying Belt

20 m/min

Detection Method

Magnet Detection

Alarm Type

Automatic buzzer and alarm lamp, the conveying belt will stop and return.

Dimension of Machine (L×W×H)

2300 × 1050 × 950 mm

Machine Weight

395 kg
