LEE WAI BRAND CNC Template Sewing Machine

Brand : LEEWAI
Model :
CWT-13090/CWT-13070/CWT-12090/CWT-12070

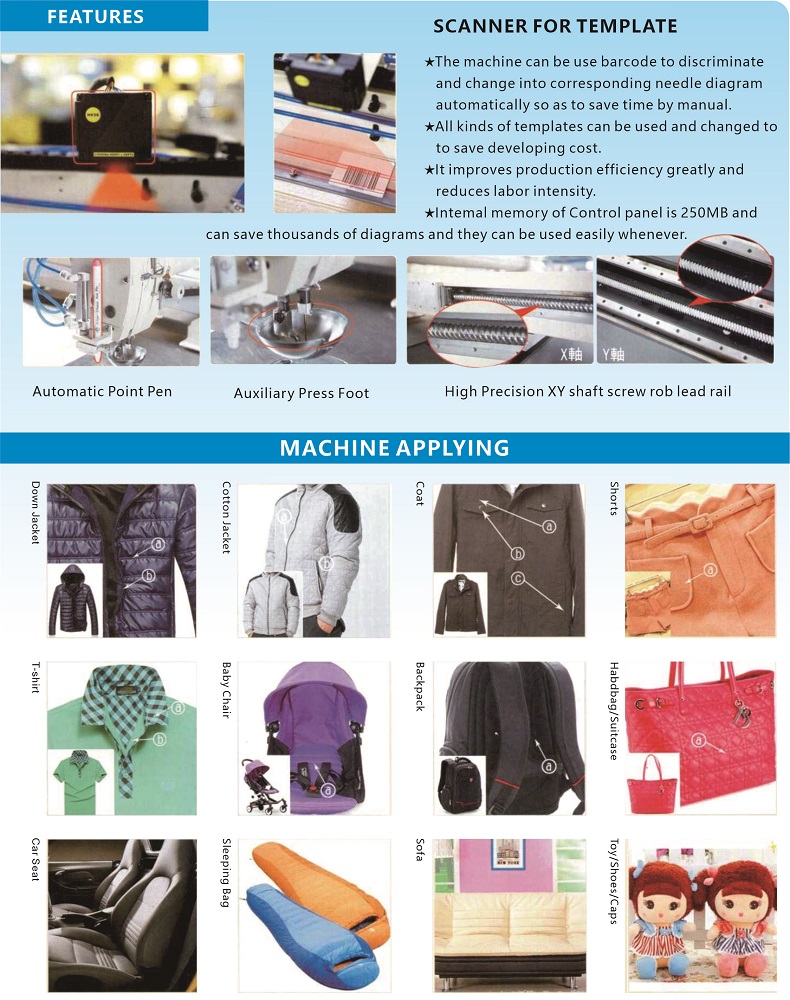

Features:

DS Series

High precision ball bearing screw rob, straight slide way, servo motor, 2 symmetry axis.

Low noise, super high sewing precision and stable, long life & high intelligence.



S Series

X/Y axis both are screw rod with servo motor. Max sewing speed: 3000RPM.



Specification:

Series

DS Series

S Series

Model

CWT-13090

CWT-13070

CWT-12090

CWT-12070

Structure

High precious screw rob

Screw rob

Max sewing speed

3500RPM

3000RPM

Max sewing area

1300×900mm

1300×700mm

1200×900mm

1200×700mm

Rotary hook spec.

(large) small hook

Needle pitch

0.05-12.7mm

Max stitches for each pattern

40000 stitches

Needle model

DB×7#-23#

Work clamp height

Max 30mm

Template switch mode

Intelligent switch by bar code

Motor

AC servo motor

Power supply

AC 220V/ single phase/ 3A

Power consumption

700 W

600 W

Pneumatic spec.

0.5-0.8 MPA  1.7L/min
