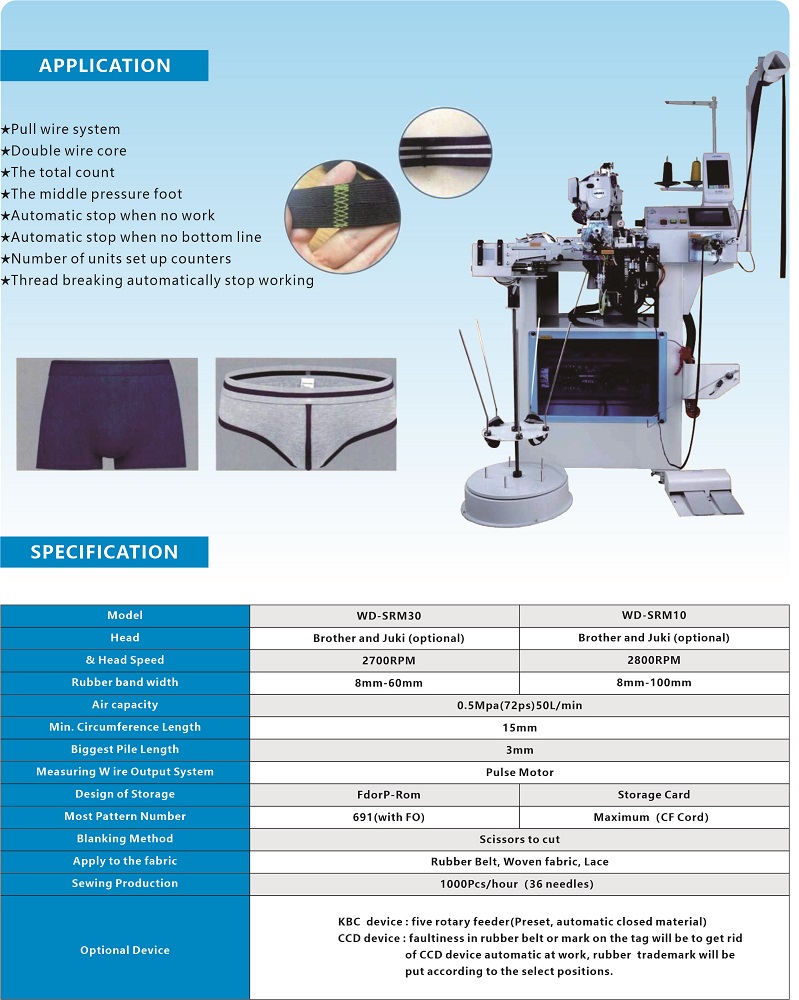

LEE WAI BRAND Automatic Splicing Rubber Machine

Model

WD-SRM30

WD-SRM210

Head

Brother or Juki(optional)

Brother or Juki(optional)

Head speed

2700 RPM

2800 RPM

Rubber band width

8-60mm

8-100mm

Air capacity

0.5Mpa (72ps) 50L/min

Min circumference length

15mm

Max pile length

3mm

Measuring wire output system

Pulse motor

Design of storage

FD or P-rom

Storage card（CF）

Max pattern number

691 (with FD)

Max 2G (CF Card)

Blanking method

Scissor cutting

Applicable material

Rubber belt, woven fabric, lace

Sewing production

1000 pcs/hour （36 needles）

Optional devices

KBC device：5 rotary feeder (preset, automatic material recycle)

CCD device：Faultiness in rubber belt or mark on the tag will be get rid of CCD device automatically at work, rubber trademark will be put according to the selected positions.
